Bent or Offset Hood Duct? Consequences and Solutions

Blog Guides Diagnostics Maintenance and cleaning News and Technologies In the kitchen

June 13, 2025 - Updated at June 26, 2025
Tiziano B.
Diagnostics
407 views

I’ve already covered how a kitchen hood duct should be properly installed in another article, but today I want to focus on a common issue that often gets reported to me and can seriously affect the efficiency of the whole system: a bent or misaligned hood duct.

With the rise of compact kitchens, custom designs, and structural constraints, it’s becoming increasingly common to see extraction ducts installed off-center, at an angle, or even sharply bent. The result? A series of problems and inconveniences that I’ll walk you through below.

In this guide, we’ll look at the most frequent causes of poorly positioned ducting, what functional and aesthetic issues this can create, and which solutions I recommend to fix or prevent the problem.

What Is the Kitchen Hood Duct For?

The duct of an extractor hood plays a crucial role: it channels smoke, vapors, and cooking odors out of the home, helping to keep your kitchen air clean and free of airborne grease. Without an efficient duct, even the most powerful hood motor can’t do its job properly.

In extraction (or vented) models, the duct connects the hood to an external outlet, ensuring constant air exchange and mechanically removing moisture and oily particles from the kitchen environment.

The duct also impacts the energy efficiency of the hood: a properly sized, straight, and well-sealed duct allows air to flow smoothly, reducing motor workload and lowering electricity consumption.

On the other hand, a duct that’s too long, too narrow, or full of bends causes pressure loss (i.e., resistance to airflow), forcing the hood to work harder and increasing energy use.

Why Is the Kitchen Hood Exhaust Duct Bent or Misaligned? All the Possible Causes

A bent or misaligned exhaust duct is one of the most common issues encountered during kitchen hood installation—especially after a renovation. But why does it happen? Here are the most frequent causes:

Exhaust outlet placed incorrectly or off-center: Sometimes, during system planning or construction, the hole for air expulsion is made in a spot that doesn’t align perfectly with the hood’s outlet. As a result, the duct is bent or diverted to adapt, often with sharp angles or inefficient curves. 90° bends should be minimized, as they reduce extraction performance.
Structural constraints (beams, columns, cabinets, custom furniture): Architectural elements or existing furniture may obstruct a straight duct installation, forcing the installer to route the duct in a more complicated path to work around obstacles.
Aesthetic compromises or mounting errors: In some cases, the duct is hidden behind a panel or repositioned for aesthetic reasons, at the expense of proper airflow. When the priority is “make it invisible,” the system’s performance often suffers.
Use of unsuitable or overly flexible materials: Flexible aluminum or PVC ducts, if not properly fixed, can bend or sag over time, losing their shape. Excessive length can also cause the duct to droop due to gravity.
Lack of proper planning during design phase: The connection between the hood and the wall/ceiling outlet should be planned early. If it's left to improvisation during installation, "makeshift" solutions are often the result.
Modifications made after kitchen installation: Sometimes the duct gets altered post-installation to make room for other systems (e.g., air conditioning, a boiler, or new cabinetry), losing its original alignment. This is very common during renovations.
Limited space between hood and ceiling: If the area above the hood is tight, the duct may have to bend to fit the existing structure. This is often the case with chimney-style hoods in kitchens with tall cabinets or low ceilings.
Poorly secured ductwork: If the duct isn’t fixed using clamps, brackets, or rigid supports, it can shift over time due to vibration, gravity, or air pressure—causing it to sag or tilt.
Forced connection between different duct diameters: When ducts of different sizes are joined (e.g., a 125 mm duct connected to a 100 mm hole), adapters are used that may create bends and constrictions, reducing airflow efficiency.

A poorly placed duct isn’t just a cosmetic issue: it can seriously impact the hood’s performance and lead to noise, vibration, or backflow of odors. Let’s take a closer look at the potential risks in the next section.

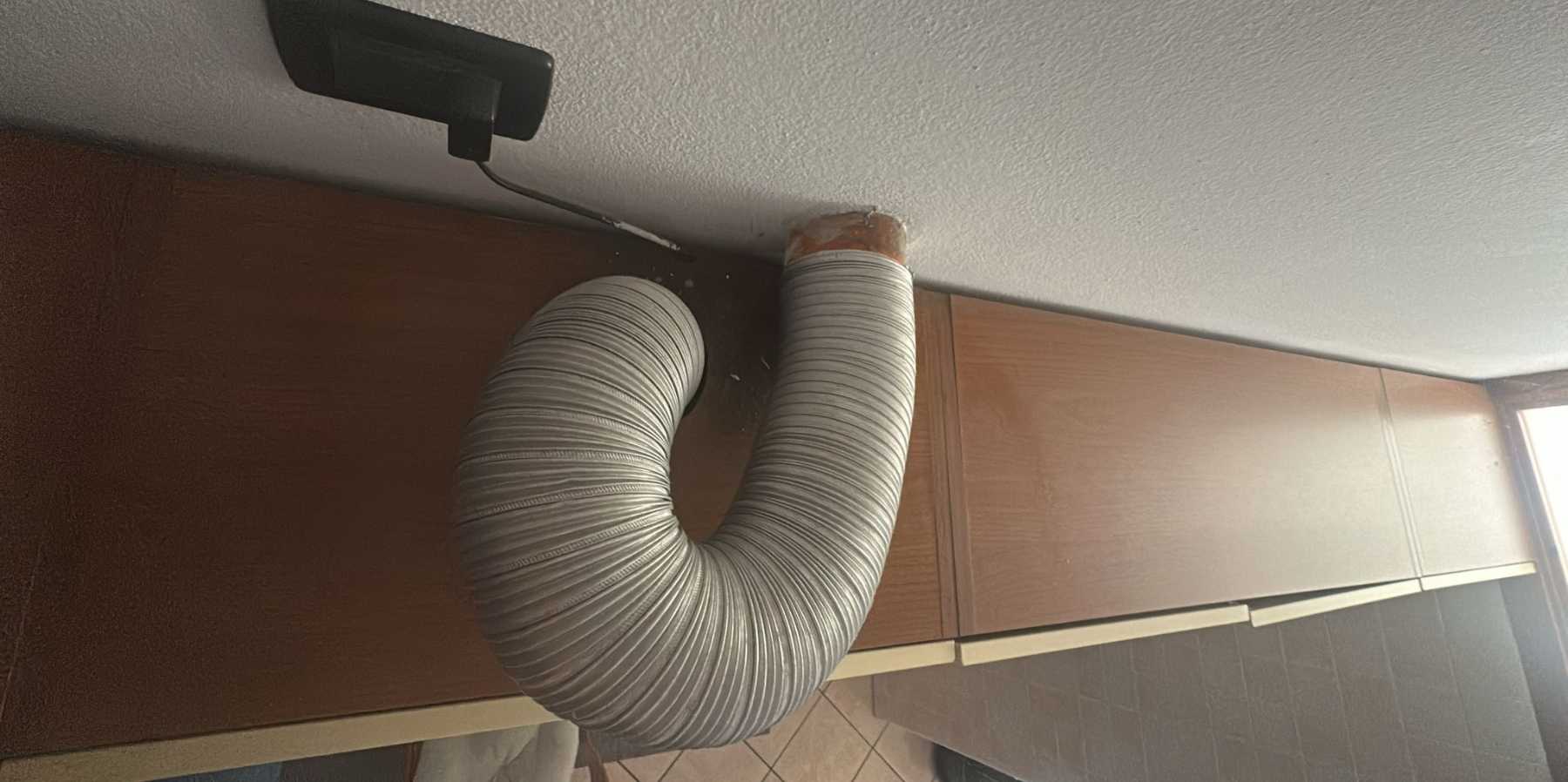

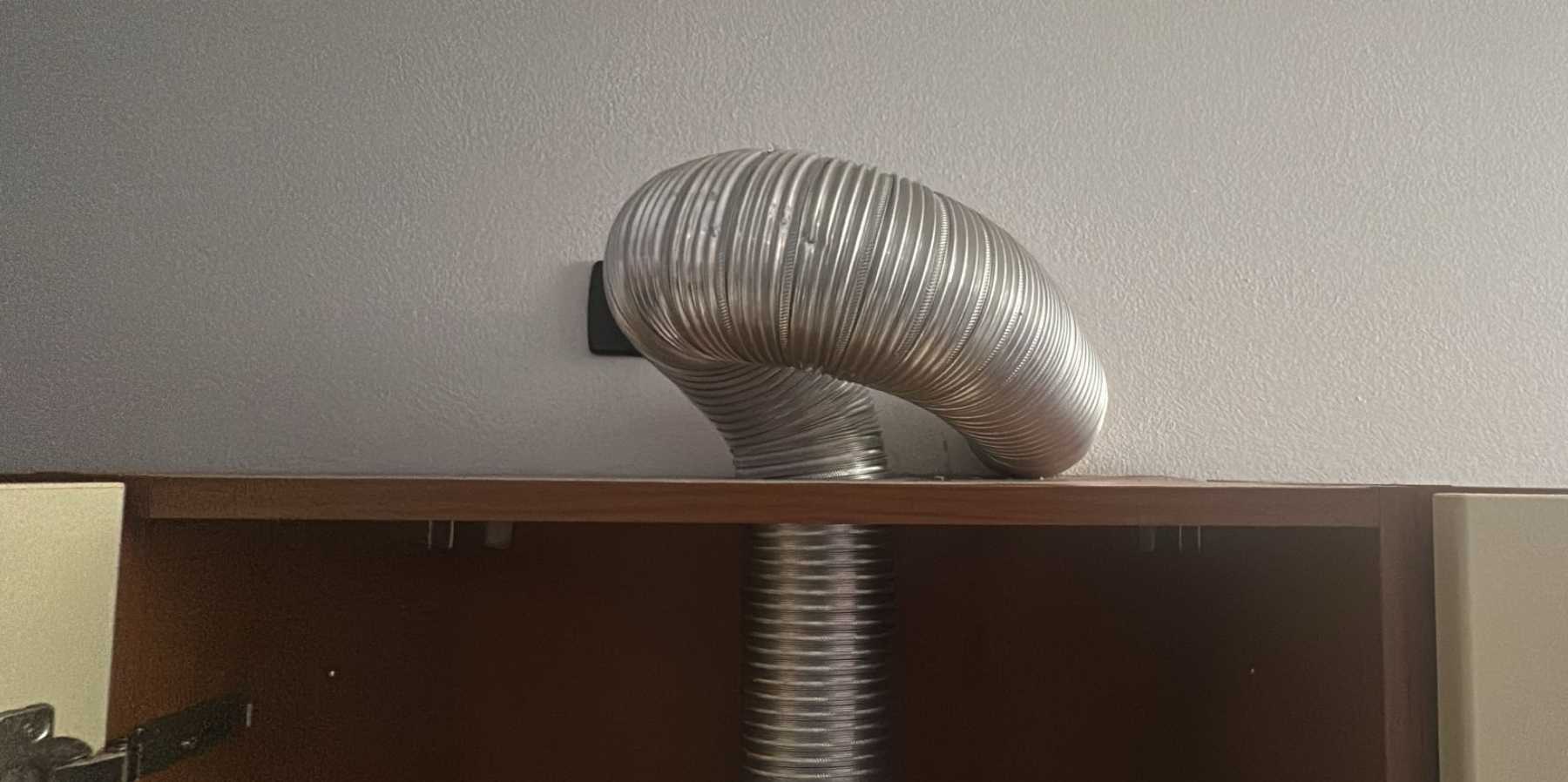

Photo of an off-center hood duct with multiple bends and limited space

The Risks of a Bent or Misaligned Hood Duct

A poorly installed exhaust duct leads to several technical and practical issues, many of which are often underestimated. Let’s go through them:

Loss of extraction efficiency: Every 90° bend can reduce airflow efficiency by up to 30%. If the duct is too twisty or sharply bent, the airflow encounters resistance that slows it down or even prevents proper suction.
Increased noise and vibrations: A bent or deformed duct causes internal turbulence, resulting in louder operation and annoying vibrations during hood use. This is especially noticeable in high-powered models.
Condensation buildup and grease backflow: A duct with improper slope can lead to condensation and the accumulation of vaporized grease, which may flow back toward the filters—or even drip onto the cooktop. In colder environments, the risk of condensation is even higher.
Backflow of odors or fumes into the kitchen: If the duct is off-center and poorly sealed - or lacks a non-return valve - extracted fumes can flow back inside. This issue is common in non-professional installations or with worn components.
Higher energy consumption: A blocked or badly positioned duct forces the hood motor to work harder. This increases energy usage and causes the ventilation system to wear out more quickly.
Greater risk of air leaks or pressure loss: A bent duct or poorly aligned joints can cause air leaks that further reduce extraction performance. These microleaks compromise the system’s overall seal - especially when the duct runs through false ceilings or internal walls.

In addition to worsening the air quality in your kitchen, a misaligned duct can also shorten the overall lifespan of the hood itself.

What to Do If the Kitchen Hood Exhaust Duct Is Bent or Misaligned

A bent or off-center exhaust duct doesn’t always need to be completely redone. In many cases, corrective actions can significantly improve the hood’s performance and reduce inconvenience. Here are the most effective options:

Reduce the number of bends: If possible, revise the duct’s layout to minimize sharp angles and detours. Gentle curves or 45° elbows help maintain good airflow efficiency.
Install a high-quality flexible duct or rigid/telescopic ducting: Flexible ducts are useful for off-center connections, but they must be stretched out and smooth - never crushed or excessively bent. Even better, use rigid or semi-rigid PVC or aluminum ducts, which reduce internal turbulence and allow air to flow more freely.
Use dedicated angle connectors: If you can’t move the wall or ceiling outlet, consider using L- or S-shaped connectors, specifically designed to align the duct with the hood outlet without pinching or narrowing the path.
Install a non-return valve (if missing): In systems with long or angled runs, a non-return valve prevents odors and fumes from flowing back into the kitchen. Make sure it’s correctly installed and not blocked by condensation or grease.
Add a vertical section before the bend: If there’s enough space above the hood, a short vertical run (at least 20–30 cm) before the first curve helps stabilize airflow and reduce pressure losses from direction changes.
Improve the thermal insulation of the duct: If the duct passes through cold areas (like an attic or false ceiling), insulating it with the right sheaths reduces condensation buildup and extends the life of the components.

If the duct is badly damaged, crushed, or improperly routed, you may need to reconsider the entire extraction system design.

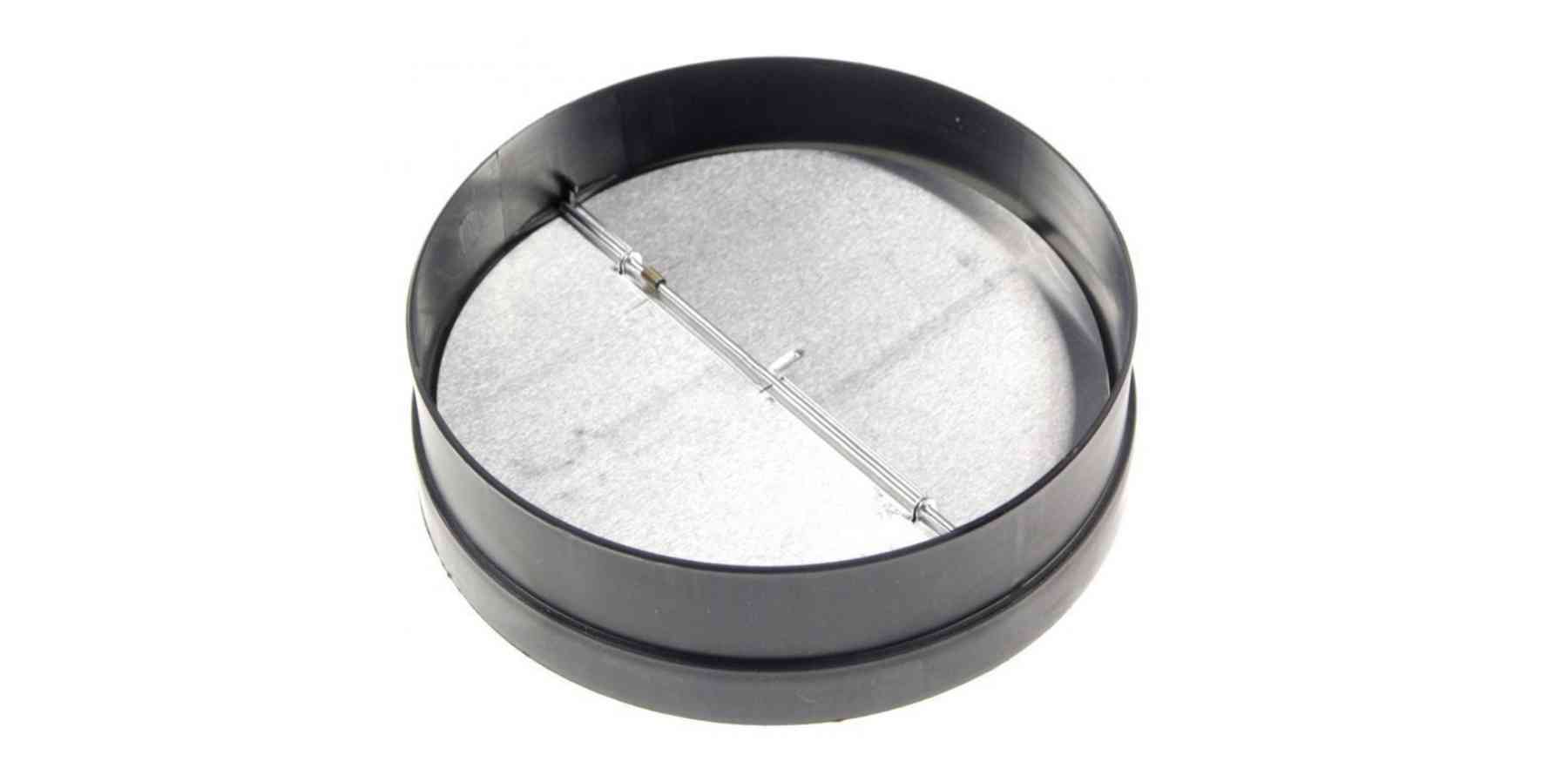

Example of a non-return valve - click here to view its features

Who Installs and Connects Kitchen Hood Ducting?

Duct installation should always be handled by a qualified technician, such as a kitchen appliance installer or an electrician with experience in ventilation systems. During renovations, plumbers or general contractors often take care of it, especially when the ductwork is hidden in walls or ceilings.

For external venting systems, it's important that the installation complies with UNI 7129-3 standards to ensure proper smoke evacuation, safety, and efficiency.

Filtro Cappa: Filters and Spare Parts for Your Kitchen Hood

A misaligned or bent duct can compromise your hood’s performance, but worn-out filters or poor-quality replacement parts can make things even worse by increasing air resistance, noise, and energy use.

At Filtro Cappa, you’ll find a wide selection of compatible filters and spare parts for a variety of brands and models. Choosing new, high-quality components is the simplest way to keep your hood running efficiently, especially when the exhaust system isn’t ideal or can’t be modified.

If you have any questions or concerns, don’t hesitate to contact our support team. We’ll provide specialized advice on your hood and help you solve any issues that can’t be fixed with a simple DIY approach. Reach us on WhatsApp or by email, and we’ll respond promptly (within 24 hours).
