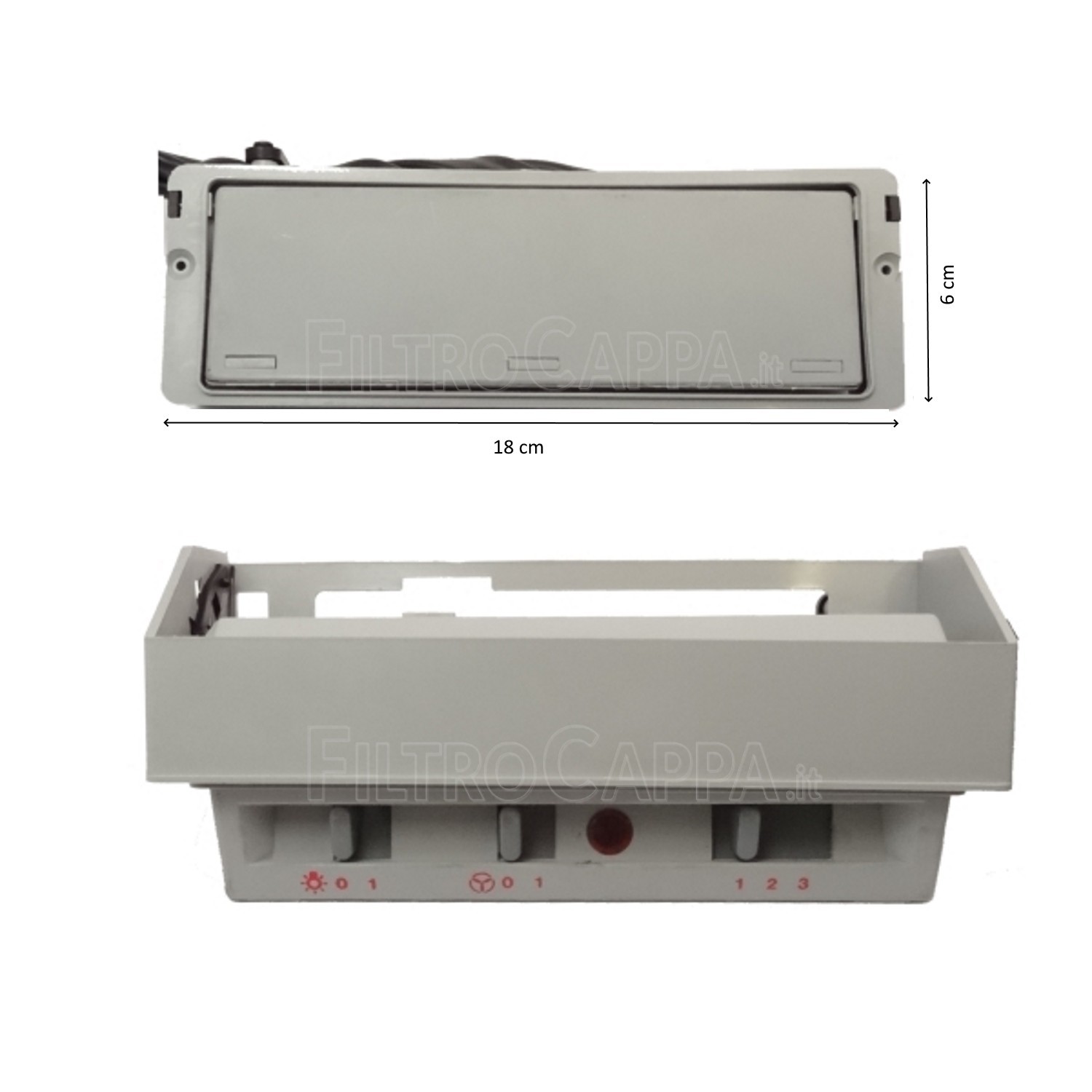

Slider Dashboard 3 Speeds and Light Complete with Electronic Board Faber 4269034
CONTROL PANEL FOR 6/40 MOTORS WITH 4 WIRES
Compatibility
Faber Cooker Hoods: Nova - Nova Soft - Egyzia - Ronda - Egizya - Futura 9705 - Inca Vario - Rondas
Electrolux Alno Cooker Hoods: AEF 3030 N - AEF3030N
Alternative Reference Codes
Original Faber Code: 133.0064.913
Technical Specifications
- Functions: Dashboard slider with 3 speeds and light control, complete with electronic board.
- Motor Compatibility: Suitable for 6/40 motors with 4-wire connection.

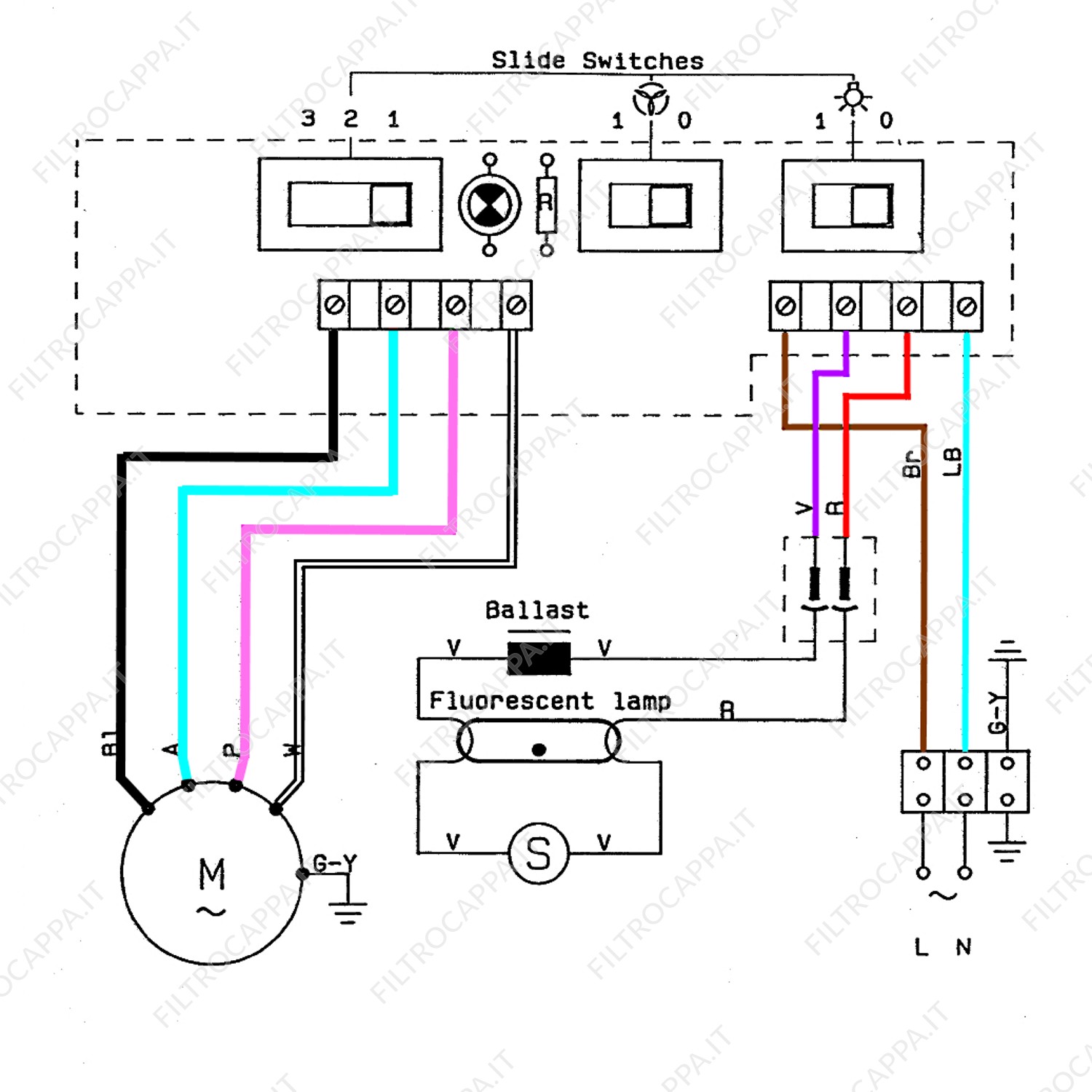

- Preassembled Wires:
- Cooker hood light: 2 wires (Red and Purple).
- Power supply: 2 wires (Brown and Light Blue, 220V voltage).
- Motor: 4 wires (Blue, Pink, Black, and White).
- Ground: 1 wire (Yellow/Green).
Installation Instructions
Preparation:
- Disconnect the cooker hood from the power supply to ensure safety.
- Remove the metal filter grilles and the charcoal filter support by unscrewing the 4 screws.
- Detach the complete light assembly by removing the 2 screws under the filter support.

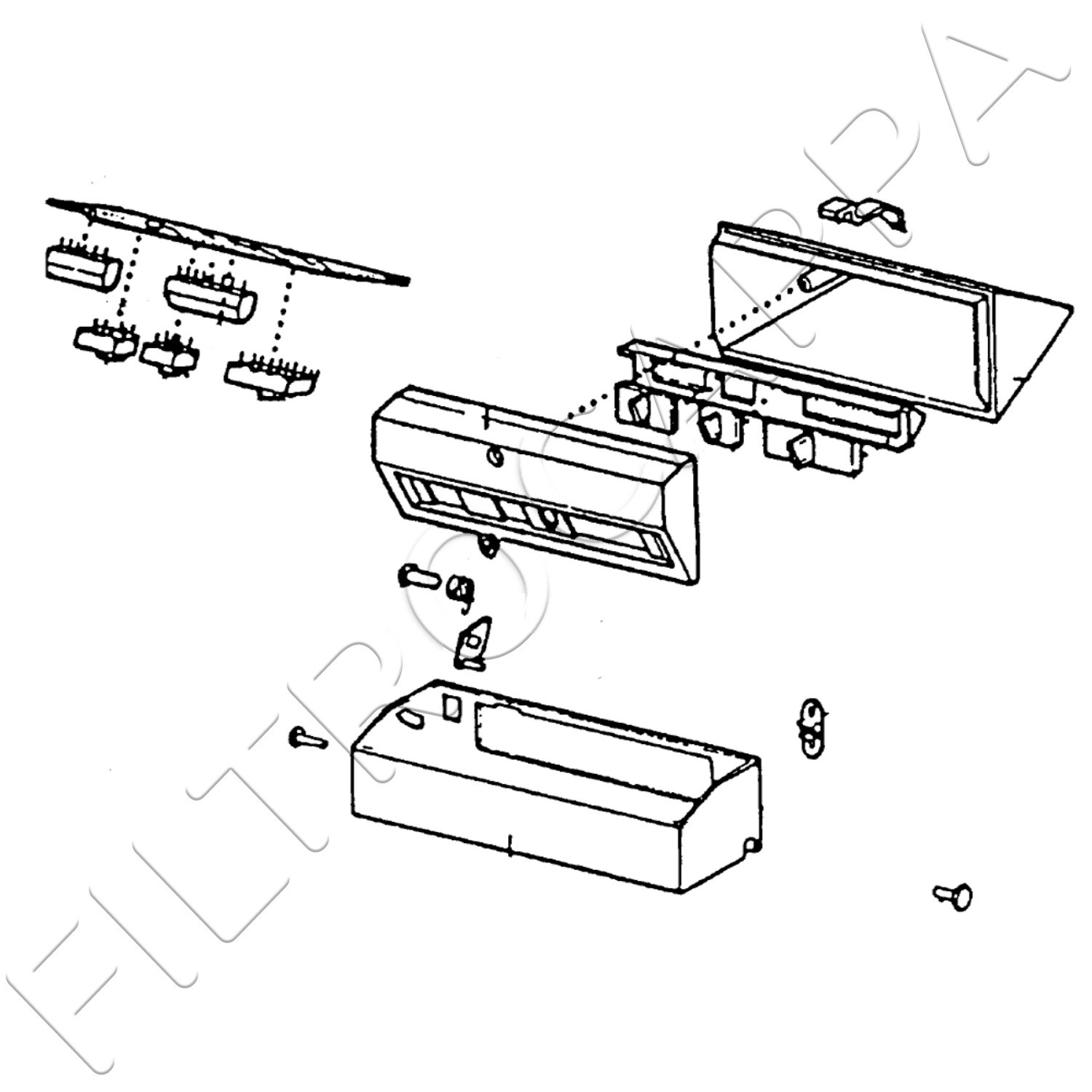

Removing the Old Control Unit:
- Unscrew the 6 screws of the two supports and the 2 screws of the existing control unit.
Installing the New Control Unit:
- Install the new unit following the reverse order of removal.
- Connect the preassembled wires to their respective terminals (motor, light, power supply, ground).
Verification:
- Test the functionality of the 3 speeds and the light.
Product Advantages
- Genuine Faber: Quality certification and guaranteed compatibility.
- Intuitive Installation: Preassembled wires ensure quick and easy replacement.
- Reliable Performance: Ideal for restoring full functionality to Faber and Electrolux Alno cooker hoods.
This product is the perfect choice to ensure the proper functioning of your cooker hood, providing a quick and safe solution for effective maintenance.
