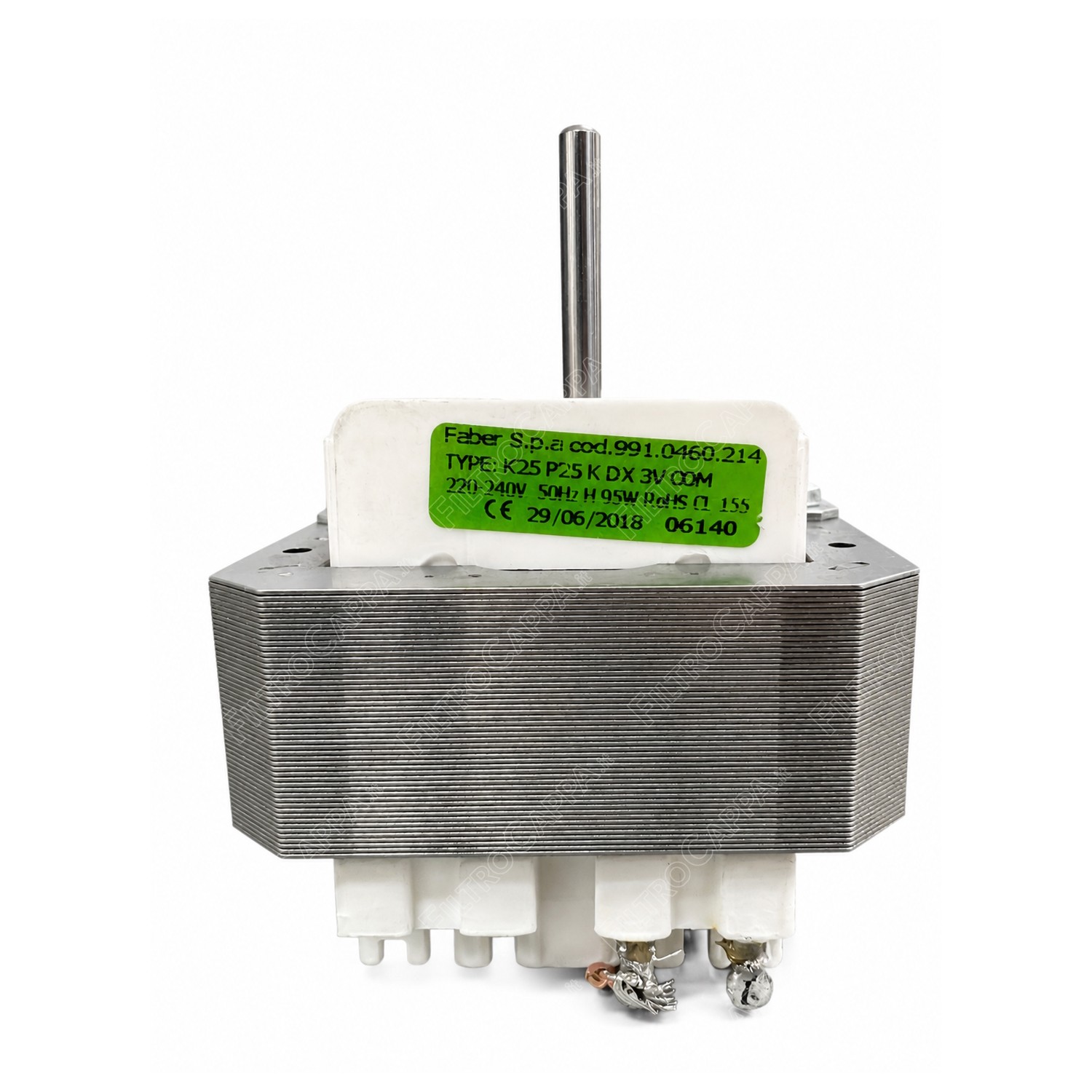

K25 P25 DX 3-Speed Common Wire Motor for FABER FRANKE Cooker Hood 133.0482.498
Product code
133.0482.498 – 991.0460.214
Catalog description
MOTOR K25H P25K DX 3V 220-240/50Hz (WIRED)
Suitable for Cooker Hoods
FABER: 124 LG/X 3V A60 (F.M.) – 124 LG/X 3V A90 (F.M.) – 152 LG A60 – 152 LG A60 S/IMBALLO – 152 LG A90 – 152 LG A90 S/IMBALLO – 152 LG/X A60 – 152 LG/X A90 – 152 LGX (F.M.) F60 S/IMBALLO – 152 LGX (F.M.) F90 S/IMBALLO – 2152 LG 3V A60 S/IMBALLO – 2152 LG 3V A90 S/IMBALLO – 2152 LG A60 – 2152 LG A90 – 2156 LG/X A60 – 2156 LG/X A90 – EST1 LG A60 – EST1 LG A90 – PCH00 AM26A (2156/25 A60) – PCH00 AM29A (2156/25 A90) – PCH01 LG 16A (152 LG A60) – PCH01 LG 19A (152 LG A90)
FRANKE – SMEG
Type
3-speed cooker hood motor with common wire
Technical features
Rotation: DX
Number of speeds: 3
Connection system: Common wire
Power supply: 220–240V / 50Hz

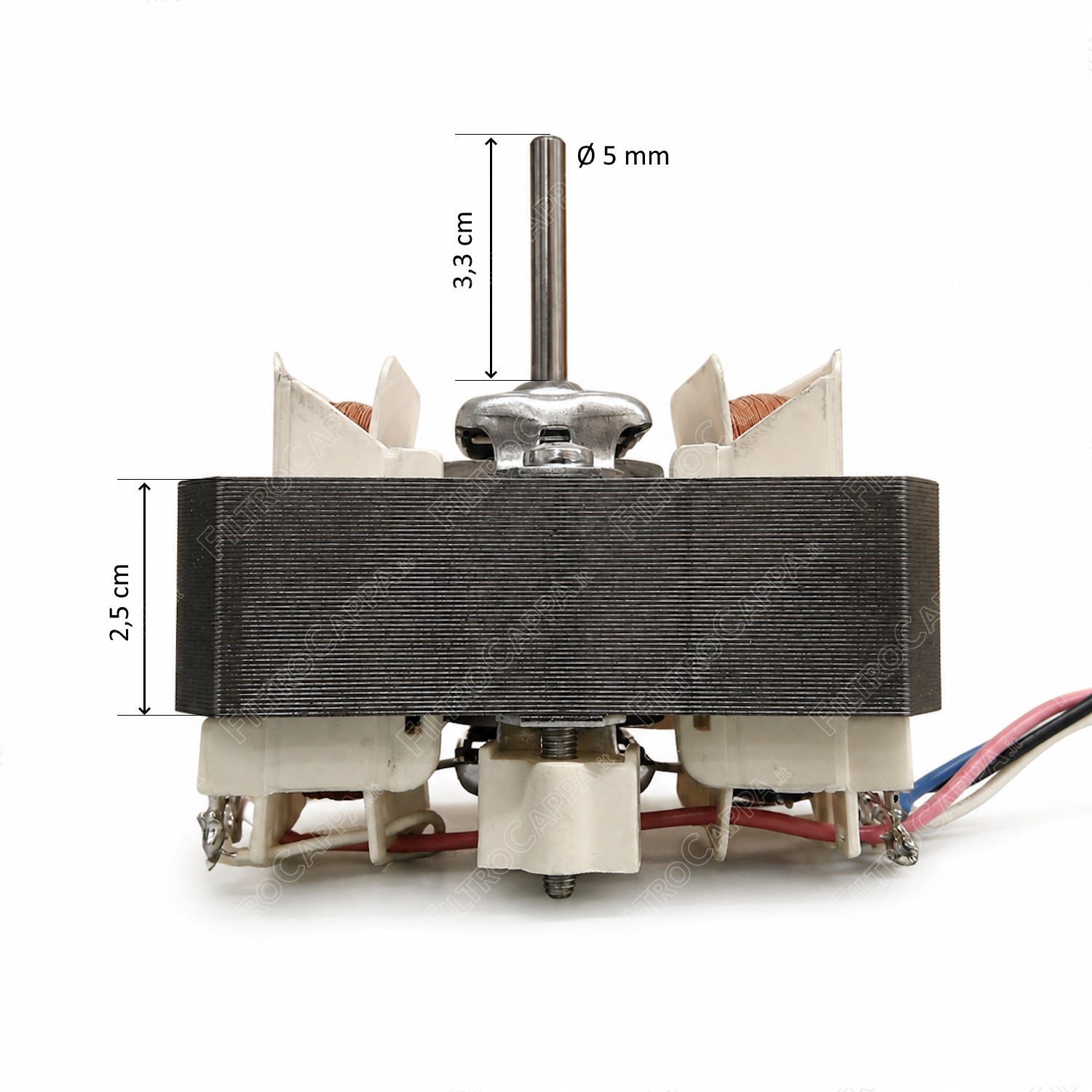

Motor shaft diameter: 5 mm

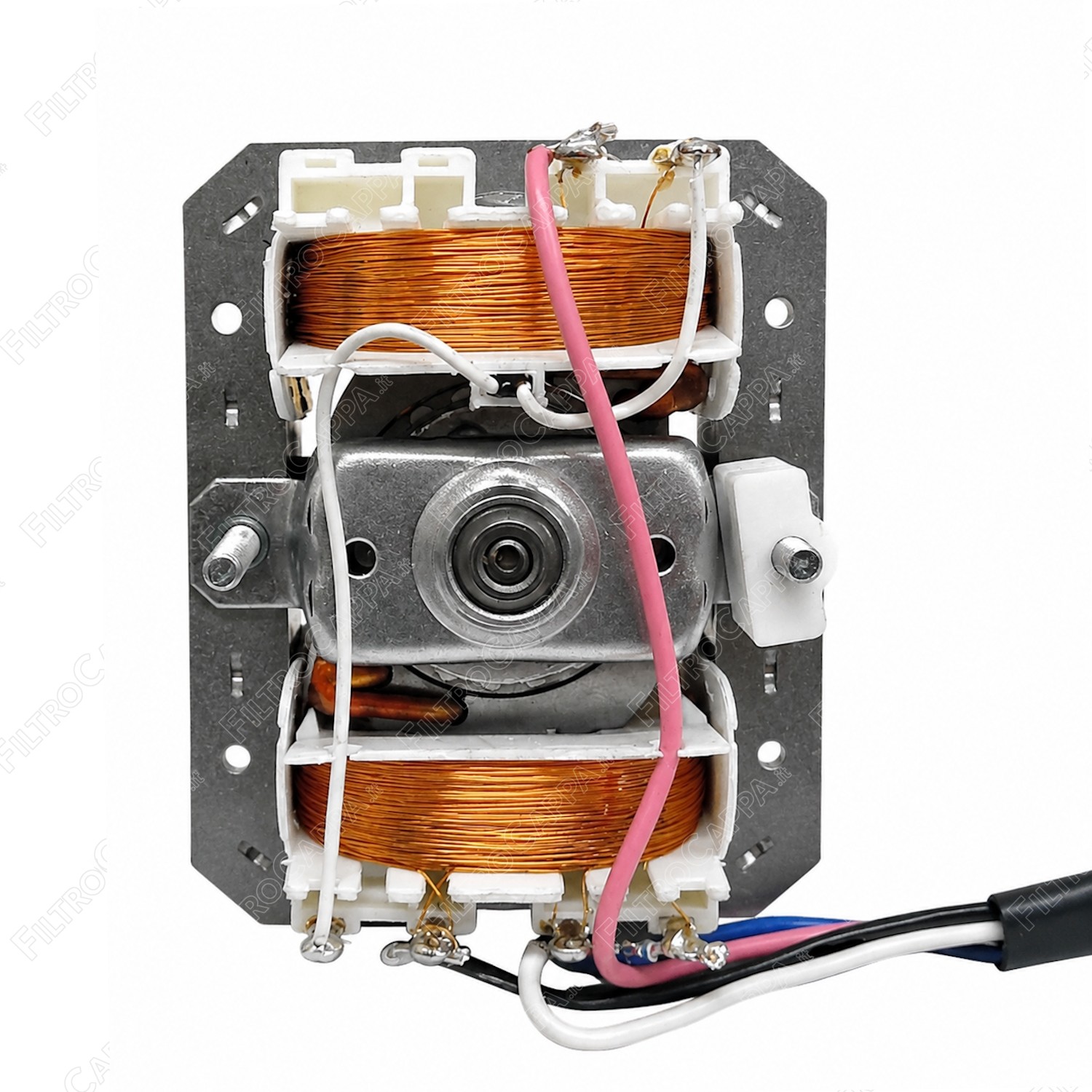

Electrical connections
Pink = common wire
Blue / White / Black = speeds
Description
K25 P25 DX motor designed for FABER, FRANKE, and SMEG cooker hoods, equipped with 3 speeds and common wire system.
Compatible replacement part for numerous FABER models from the 152, 2152, 2156.
Warnings
Incorrect wiring may cause malfunctions or irreversible damage to the motor. It is recommended to carefully follow the wiring diagram or rely on a qualified technician.
Package
1 complete wired motor
⚠ Always check rotation, power supply, motor shaft diameter (5 mm), and compatibility before purchase.
