Electronic Control Panel with Power Board and LED Light Power Supply for MAX FIRE Cooker Hood 141301540
Compatible with Cooker Hoods
MAX FIRE: SOTTOPENSILE S13 L.863 C/LED 150400075
Alternative Reference Codes
141301540
Technical Specifications

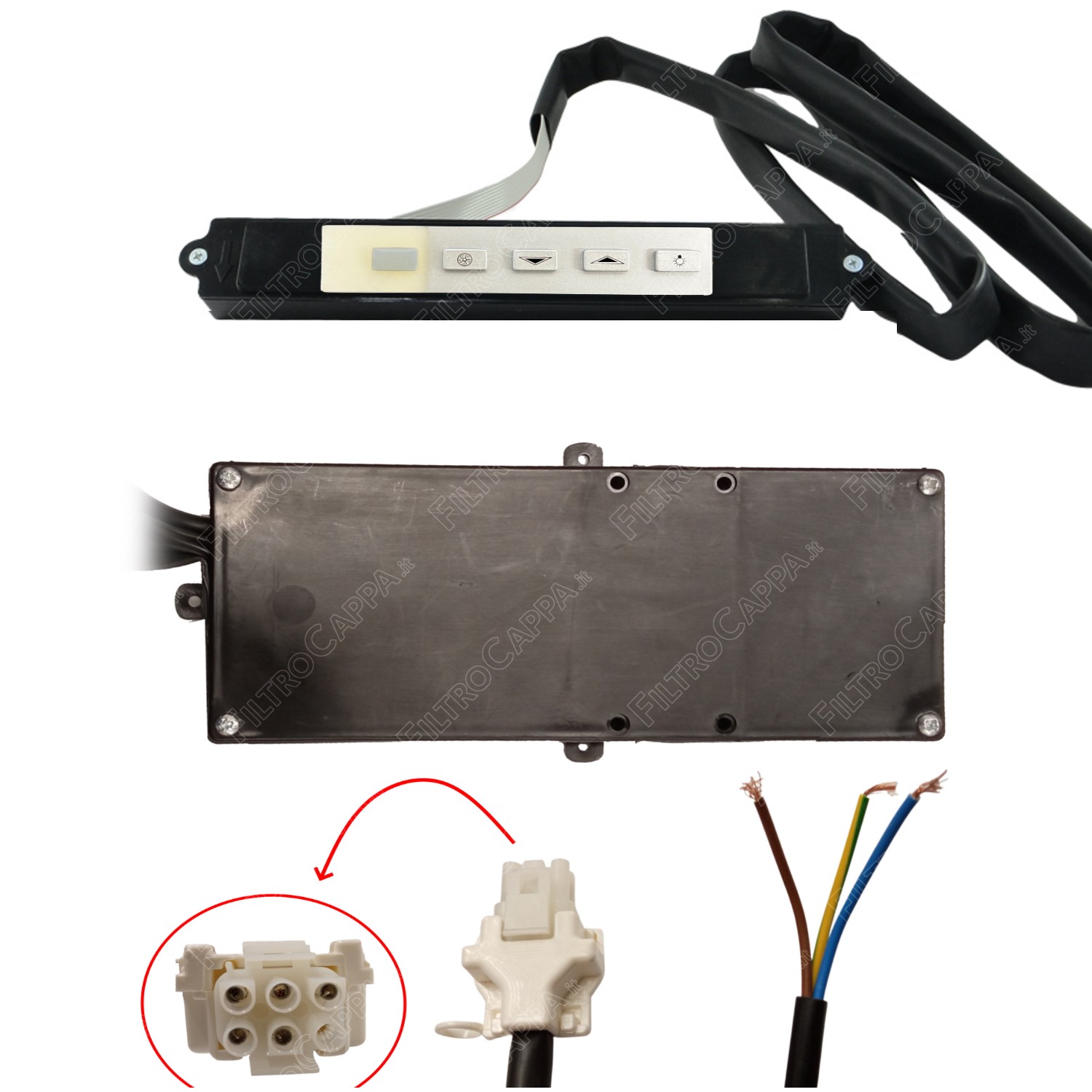

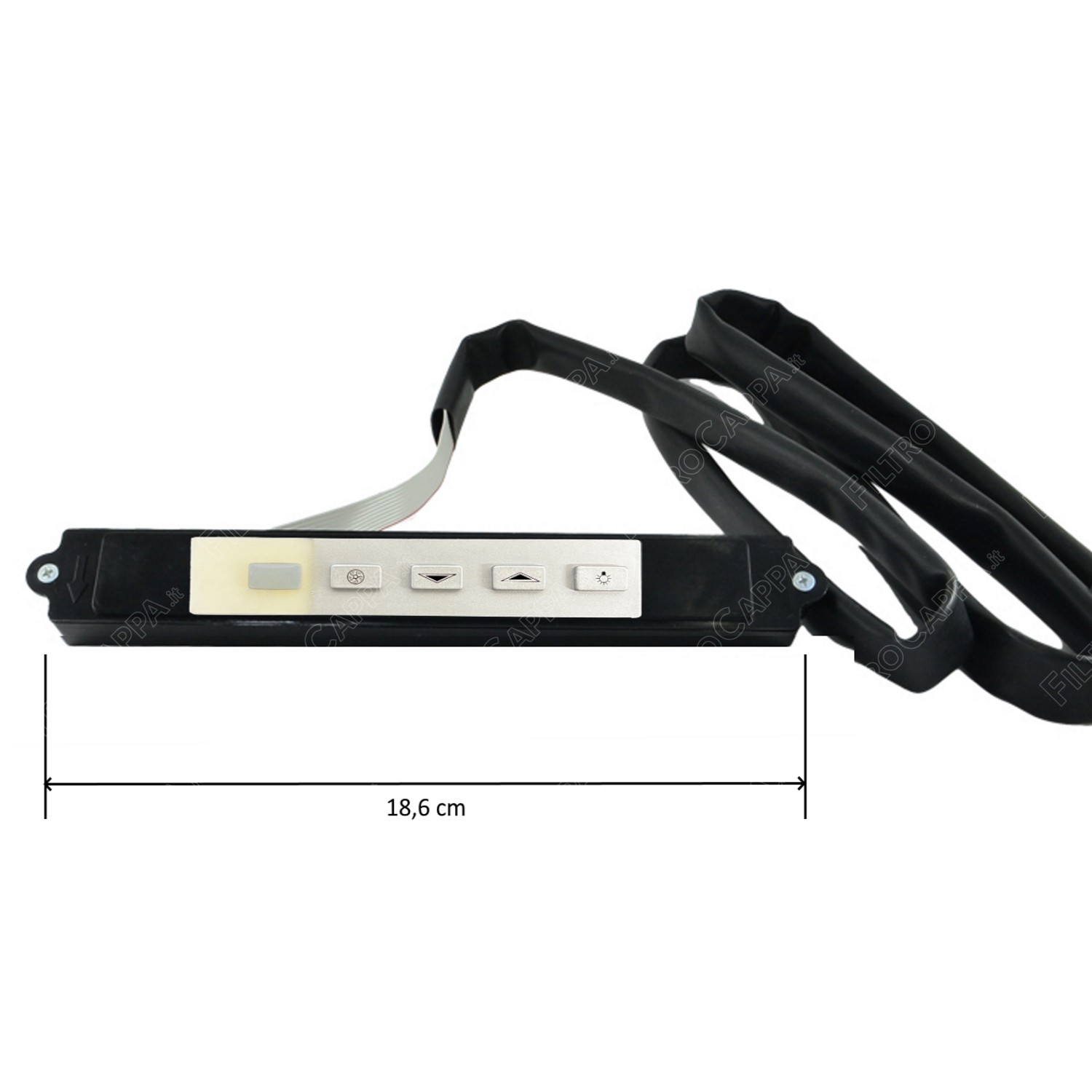

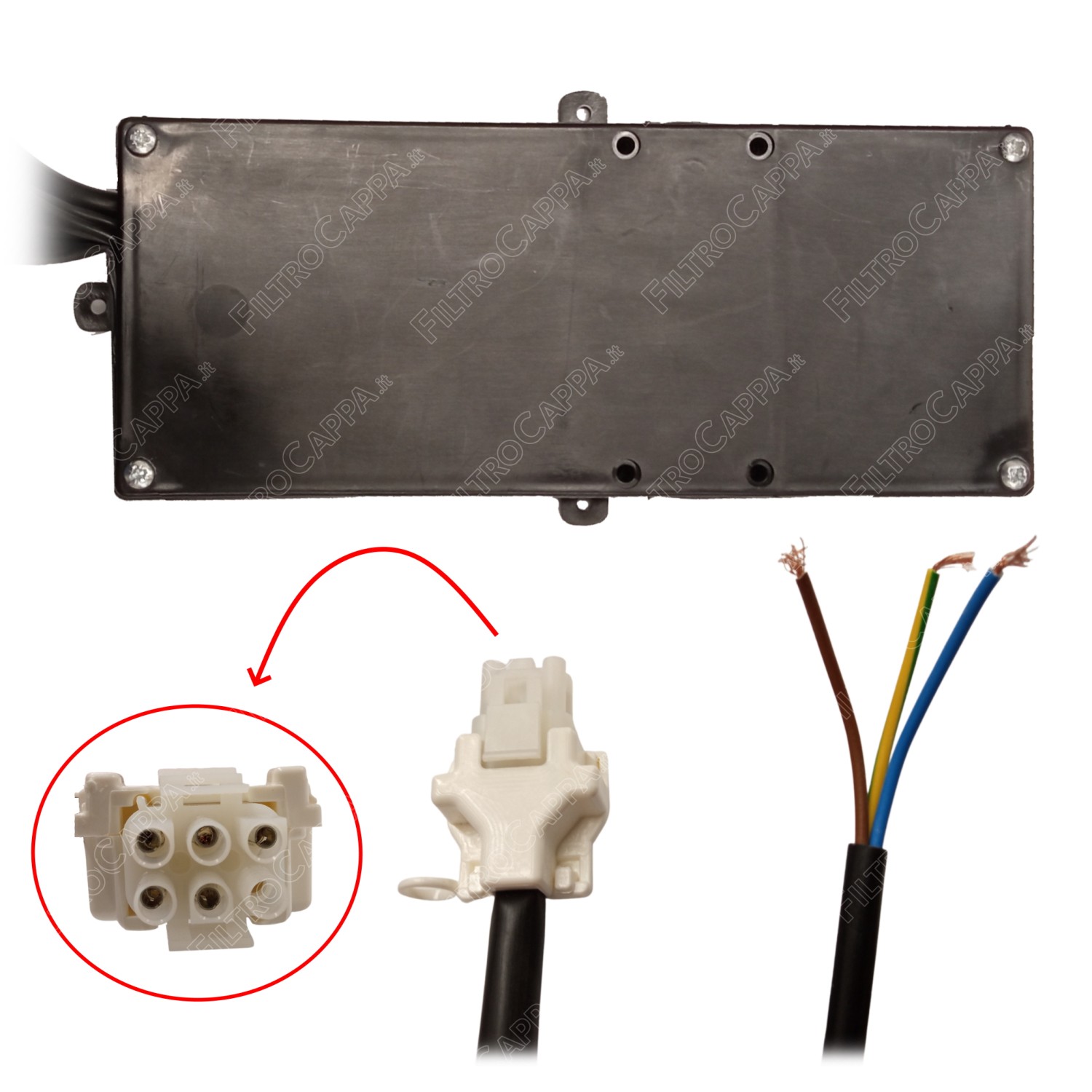

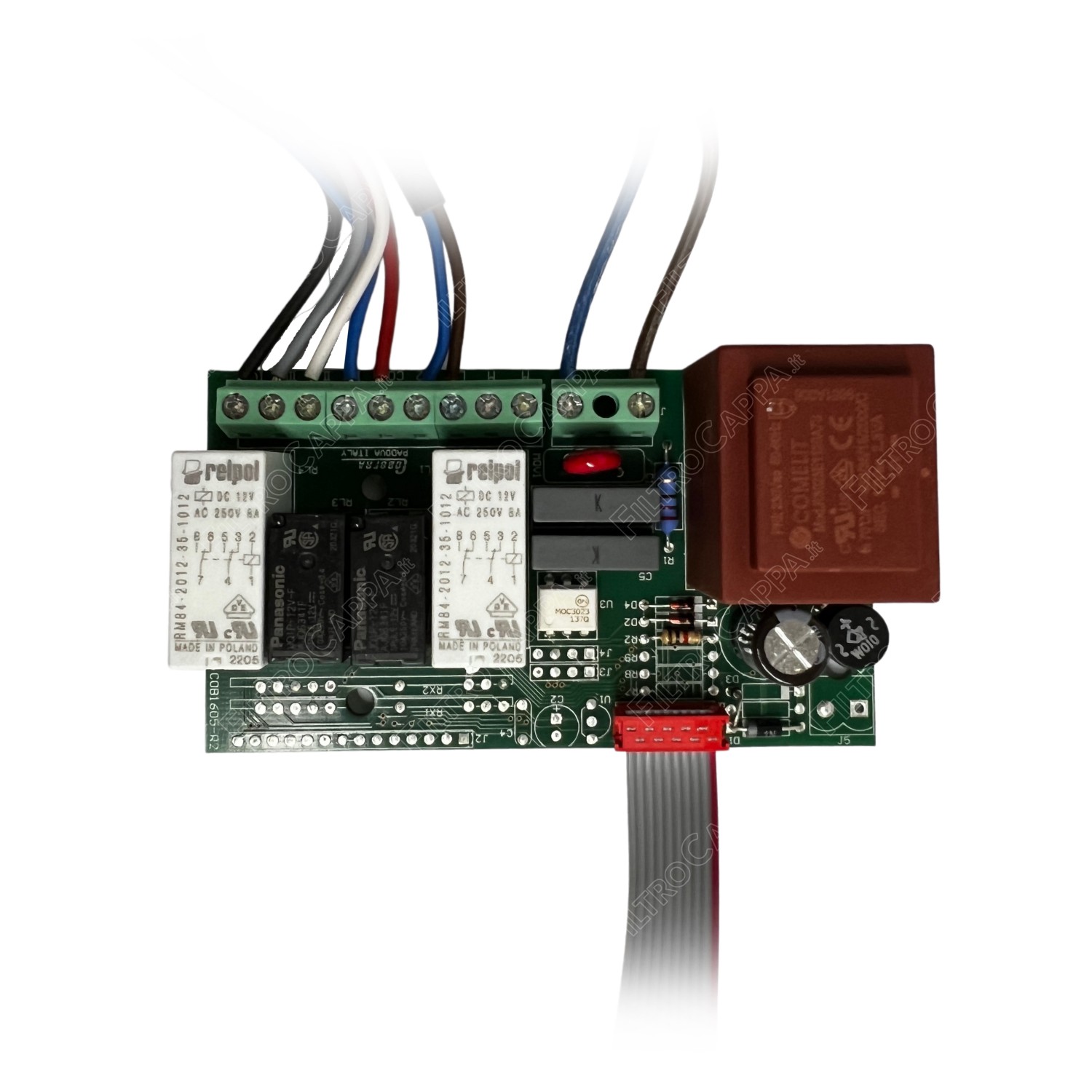

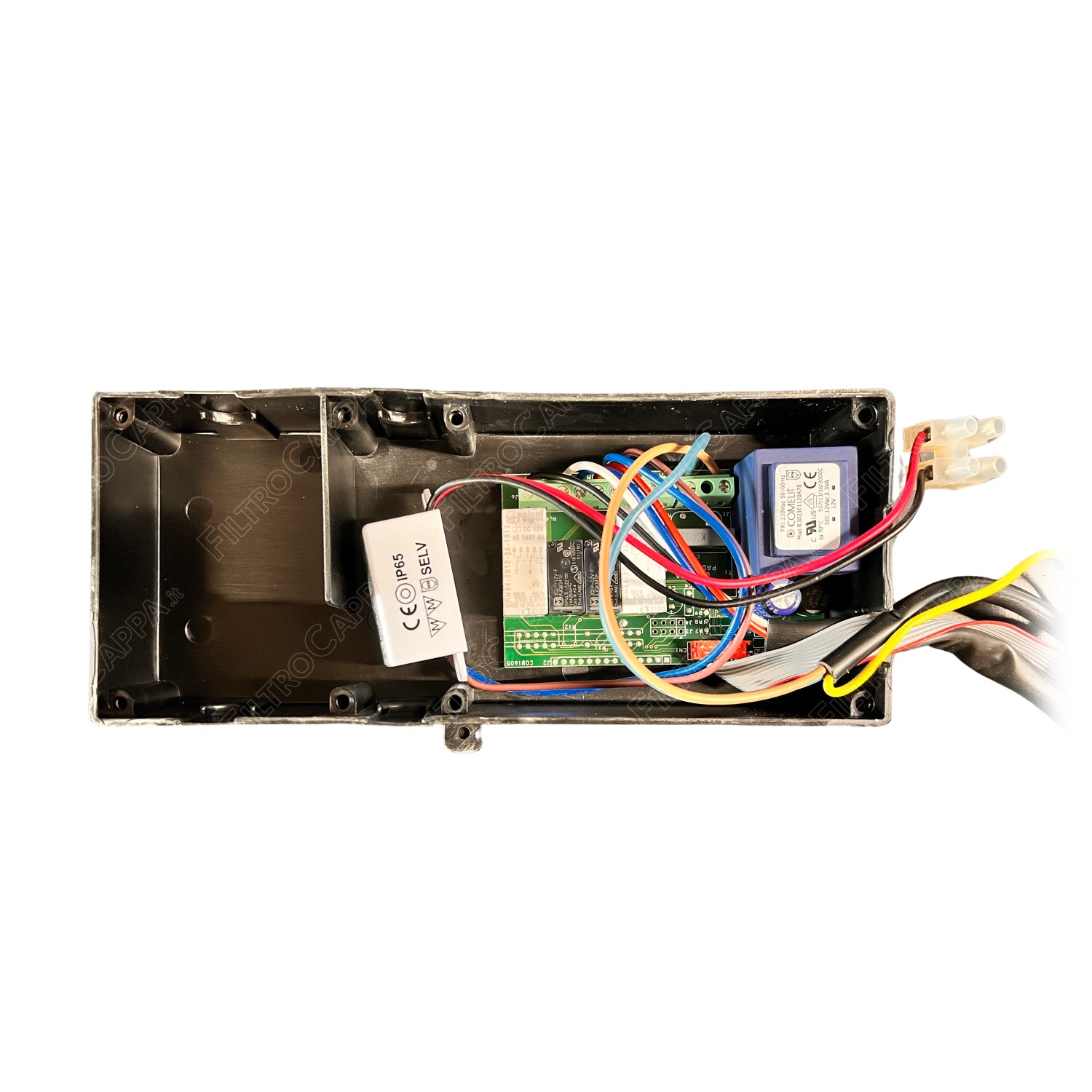

Complete kit: electronic control panel + power board + LED light power supply
Motor compatibility: GPZ 550 – GPZ 500 (3 speeds)
LED light output: 3–12 Volt – 3500 mAh
Functions: motor speed control (3 speeds), light on/off
Description
Electronic control panel complete with power board and LED light power supply, designed for MAX FIRE cooker hoods equipped with GPZ 550 or GPZ 500 motors (3 speeds). The kit provides full control of the motor and LED lighting.
Ideal replacement for restoring the control and lighting system in case of failure of the keyboard or power board.
The integrated LED module supports voltages between 3 and 12 Volts, with a capacity of up to 3500 mAh.
Original replacement designed to ensure maximum reliability and perfect integration with the specified MAX FIRE cooker hoods.
