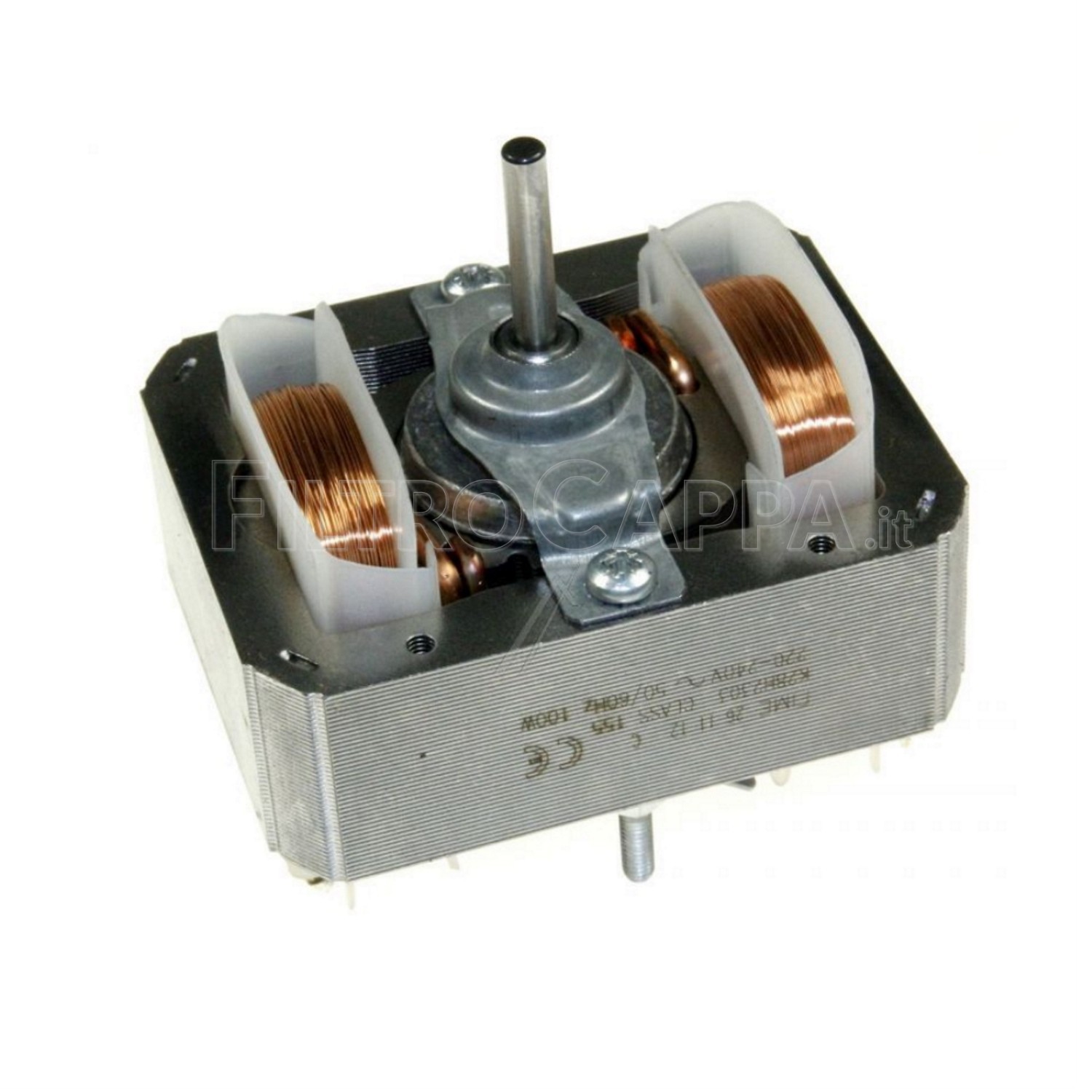

ELICA Cooker Hood Motor ELIBLOC 3V Counterclockwise Rotation K28H2303
Compatible with Cooker Hoods
ELICA: ALPI GR04R/4 – ALPI GREY/LU – ALPI GREY/ST – BRERA – CASSINO IX/A – ELIB.9 2K28 – ELIBLOC 3 F/ – ELIBLOC 9 GR – ESTRAIBILE T – K801R/60F 2M – K802R 2K27 S – K802R/80F 2M – K802R/90F 2M – PUGLIA GREY/ – TL18GR 1K27 – TURBOAIR S651 – 154G GR 60
WHIRLPOOL: AKR7491IX 859991551230
Alternative Reference Codes
K28H2303 – MOT0015184 – 488000533773 – C00533773 – FIME K28 030 13 HF
Technical Specifications
Type: cooker hood motor
Speeds: 3 speeds
Common wire: COM
Rotation: counterclockwise (CCW)
Power supply: 220–240 V ~ 50/60 Hz
Power: 100 W
Insulation class: Class 155
Description
Replacement motor for ELICA ELIBLOC series cooker hoods, designed to ensure reliable extraction performance and compatibility with the listed models. The counterclockwise rotation and 3-speed configuration with common wire (COM) ensure correct integration with the existing system.
Warning

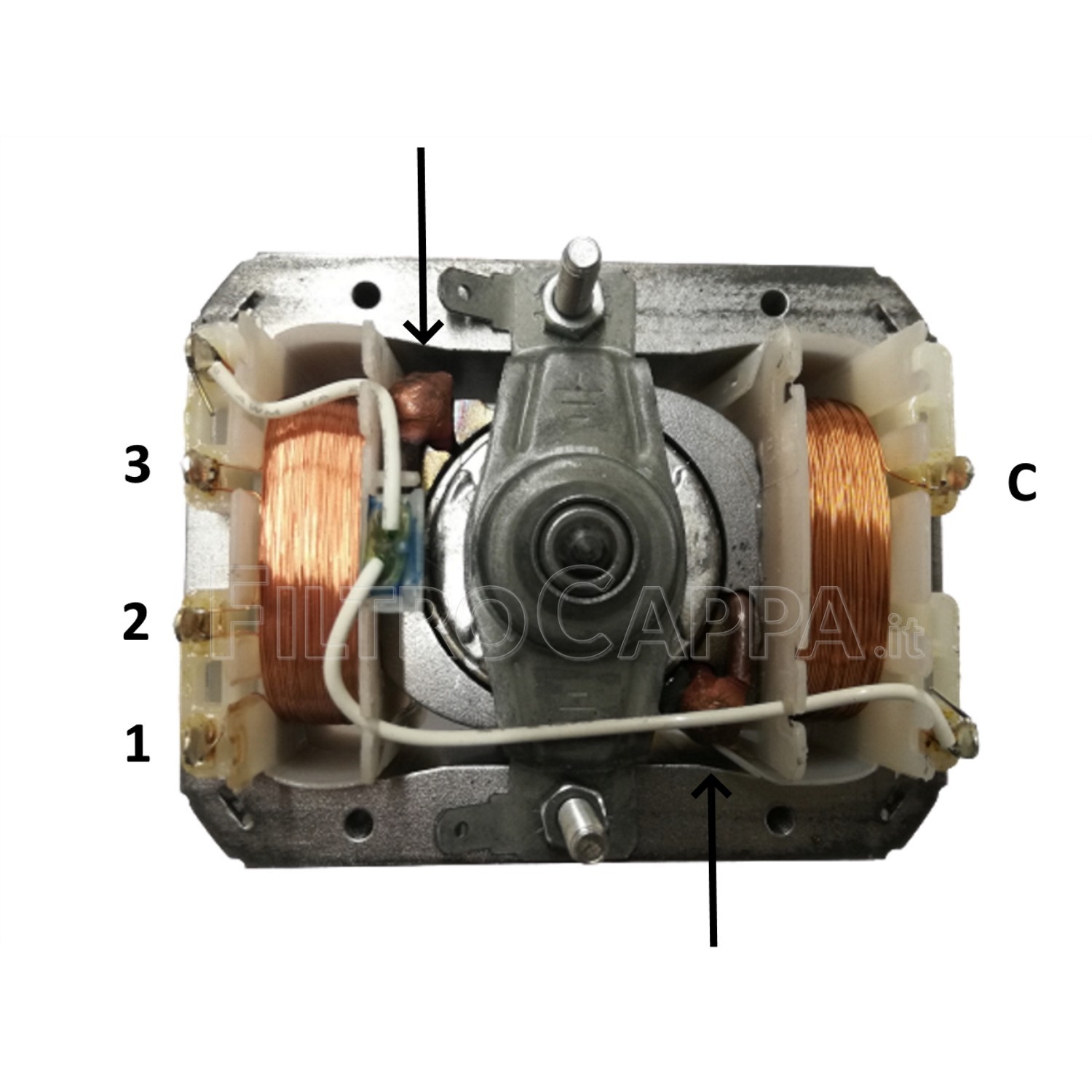

Incorrect wiring may cause malfunctions or irreversible damage to the motor. It is recommended to carefully follow the wiring diagram or rely on a qualified technician.
